SUNRISE truck and bus wash gantries

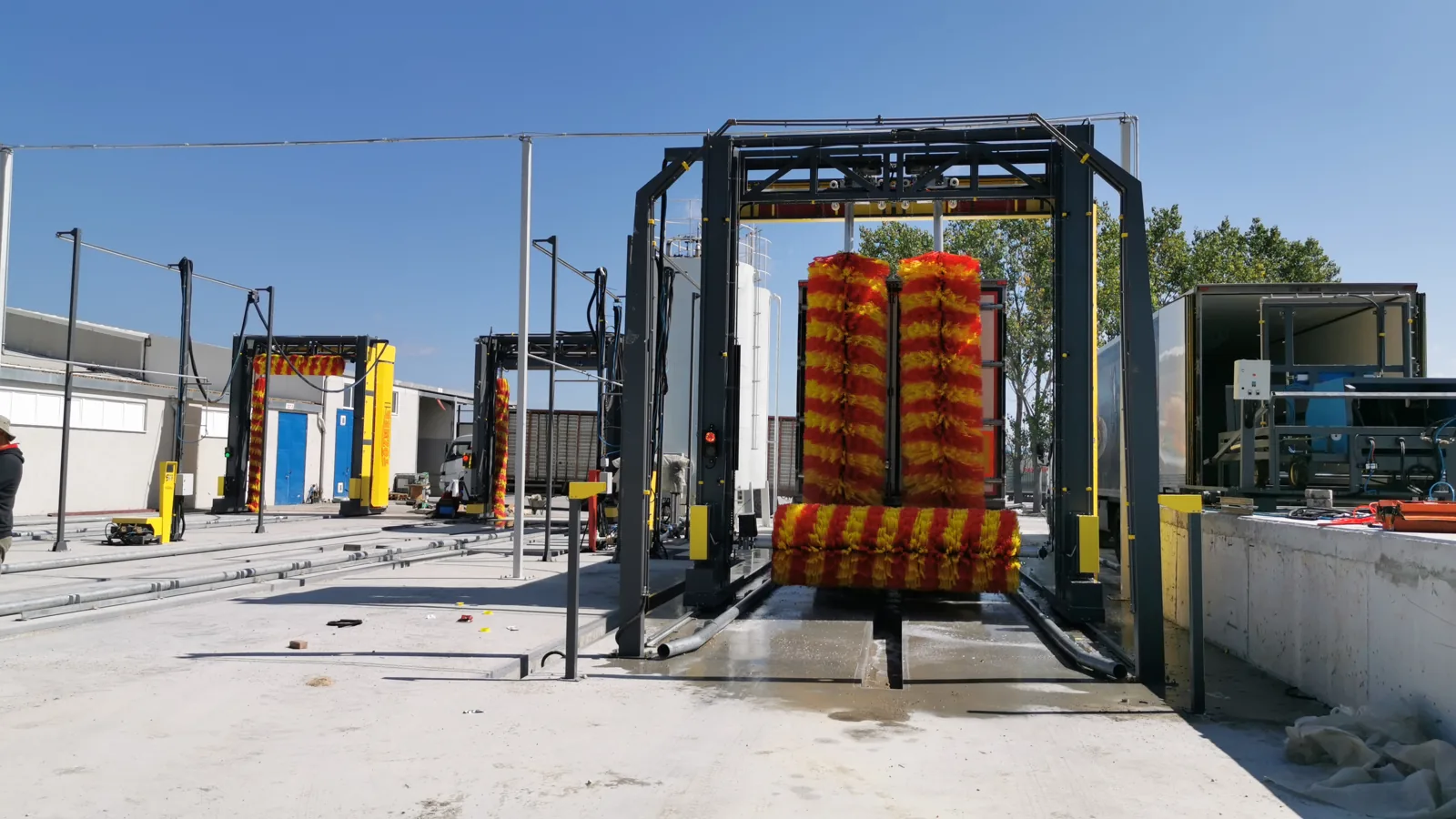

The SUNRISE W4000 and W4700 are rollover gantries that wash buses, coaches, rigid trucks, vans and trailers while the vehicle stands still. Each travels on fixed rails with a 400 cm gauge and runs from a PLC.
- Sheet
- 02 / 04
- Subject
- Truck and bus wash
- Supplier
- europemakine.com
Two heights for depot fleets

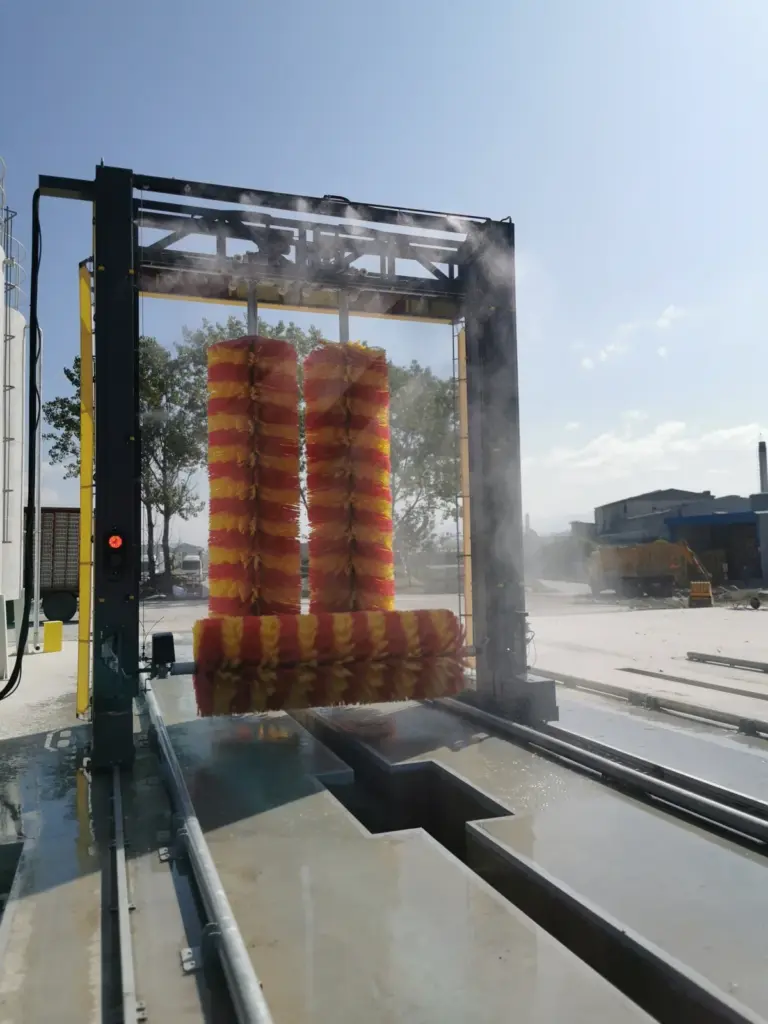

Both models wash with two vertical brushes and one horizontal brush, in PE plastic or soft brush. The W4000 washes up to 420 cm high; the W4700 reaches 470 cm, for double-deck coaches and high-cube trailers. Both wash up to 285 cm wide.
Each model has automatic programs for every vehicle type and a manual control option. Menus are in Turkish and English. Frames use A1 grade DKP steel under an electrostatic powder coat, and hot-dip galvanization is optional.
The five wash stages
-

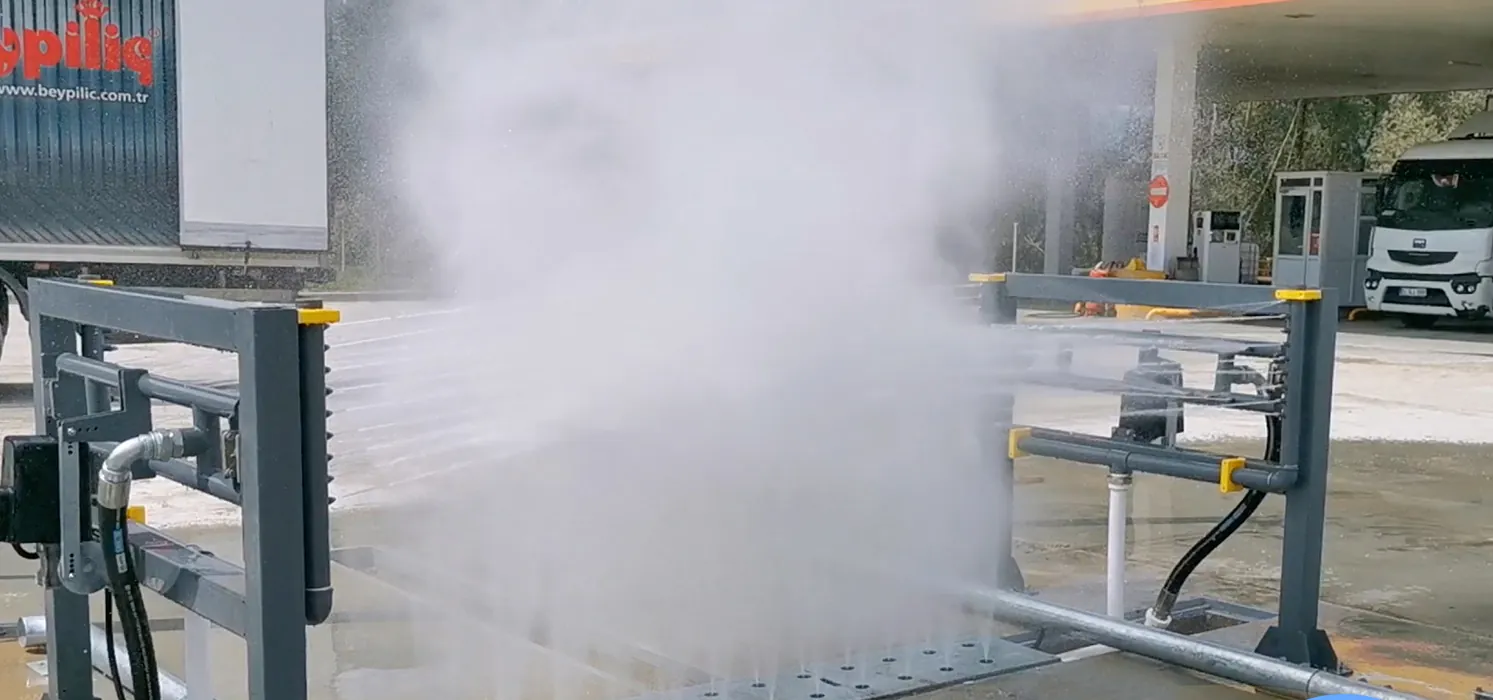

Chassis wash
Nozzles at the line entrance spray the underbody at 7.5 to 10 bar, in automatic or manual mode, over a reinforced concrete substructure.
-
Robotic side wash
Two or four turbo jet nozzles send pulsating jets along the sides at 70 to 100 bar.
-
Brush wash
Brushing is two vertical and one horizontal brush, all pressure controlled.
-
Surface drying
Surface drying is done by an automatic sweeping unit that uses high-pressure water.
-
Winter drain
Below +4 °C, a push-button winter drain clears water and chemicals from the lines and turns the brushes.
SUNRISE W4000 and W4700 specifications
| Max washing height | W4000 420 cm; W4700 470 cm |
|---|---|
| Max washing width | 285 cm |
| Machine height | W4000 510 cm; W4700 560 cm |
| Machine width, excluding water shields | 465 cm |
| Rail gauge | 400 cm |
| Voltage / frequency | 380 V / 50 Hz |
| Water requirement | 70-80 lt/min |
| Electricity | 0.12-0.15 kWh/vehicle |
| Shampoo | 10-20 gr/vehicle |
| Brush units, vertical / horizontal | 2 + 1 |
| Robotic side wash | 70-100 bar |
| Hydrowash option | 20 and 30 bar |
| W4000 washing time | 5 to 6 minutes per vehicle |
Hydrowash for liveried vehicles
Hydrowash is a brushless option for vehicles whose livery or finish should not meet a brush. The robots spray at 20 and 30 bar, with no brush contact. They read the vehicle's size, loosen dirt with chemicals before the jets, and get into indented and protruding surfaces.
Optional equipment has a water requirement of 250 lt/min. Installed power and water requirement both shift with optional equipment, water recovery and cold-weather packages, all quoted per site.
Driver guidance and the drive train
Steel router guide pipes, 3 inches in diameter, line the concrete floor. A 24 VDC LED traffic light at the rail start and a second on the machine body show red while the gantry runs or is off, and green when it is ready to wash.
Energy transmission is chain-driven, which reduces load on the gearbox and motor. Separate galvanized lines carry rinse water, shampoo and chemicals, with electrically operated dosing pumps metering them and 24 V DC solenoid valves switching them.
Questions and answers
- What does a SUNRISE quotation need?
- How the depot is laid out, how many vehicles it washes a day, and its tallest and widest vehicle.
- Can a SUNRISE gantry wash in freezing weather?
- When it drops below +4 °C, the winter drain clears out water and chemicals and turns the brushes. Packages for cold weather are quoted site by site.
- Which SUNRISE suits high-cube trailers?
- The W4700, with a washing height of 470 cm.
- Can accessories be added later?
- The machine is modular, and optional accessories install without consuming extra space.
