Car Wash System Components: Pumps to Controllers

Car wash system components fall into seven functional groups: water supply and pumps, chemical dosing, motion and frame, contact or spray elements, drying, controllers with the operator interface, and safety devices. Water reclaim is an optional eighth block that sits upstream of the pumps. This guide treats the car wash parts list as a set of functions rather than a catalog, because the same function is built differently in a touchless rollover, a brush rollover, a conveyor tunnel and a heavy vehicle gantry. Where a figure appears, the text names the machine and the source page.

The component lists below come from Europe Makine product pages, plus a small number of independent technical sources on pumps, drives and lockout. Europe Makine builds the full range of touchless, rollover, tunnel and truck wash machines, so its pages are a practical reference for how one manufacturer divides the system into parts. They are not a universal specification.

How the system parts fit together

Before comparing components, it helps to see the chain from the water inlet to the vehicle surface and back to the controller.

1. Water arrives from the supply, or from a reclaim tank, and enters the pump group.
2. The pump raises pressure and feeds manifolds, nozzles or spray arms.
3. Chemical dosing pumps add pre-soak, shampoo, foam or wax into that flow or onto separate nozzles.
4. A drive system moves the gantry, arms, brushes or conveyor.
5. Dryers remove the film of rinse water.
6. A controller sequences all of the above and reads the safety devices.

A fault in one group often shows up in another. Low water pressure may be a pump problem, a clogged filter, or a valve setting in the controller. Naming the group first narrows the search.

Water supply and high-pressure pumps

The pump group is the largest single mechanical item in a touchless machine. Europe Makine states pump pressure of 100/200 bar for the Acrobat 2X on its home page, which is roughly 1,450 and 2,900 psi. The Acrobat 2X product page adds that the high-pressure pump groups sit on a special chassis inside a protected cabin, and that a pressure adjustment valve allows customizable water pressure. Those values belong to that machine only.

Pump type matters for what you can feed it. A US patent on vehicle wash water reclamation, US 5,908,550, says high-pressure touchless washing typically needs a positive displacement or multi-stage centrifugal pump. The patent adds that these pumps are more sensitive to particulates, so recycled water needs higher purity. That is a background statement in a patent, not a regulation, but it explains why filtration and pump choice are specified together.

Pump makers publish duty lists that show how wide the range is. Wanner Pumps lists car wash duties for its Hydra-Cell seal-less pumps, covering high-pressure and blast sprays, clean or recycled water, hot liquids and low-pressure chemical dispensing. Treat that as one manufacturer’s claim about its own product line.

Pump parts vocabulary

When you order spares or read a service quote, the terms for a triplex plunger pump are consistent across suppliers. A distributor page for CAT Pumps and parts lists these wear and service items:

• crankcase
• valves
• ceramic plungers
• seal kit
• pulsation dampeners

That page is a parts distributor listing, so use it for vocabulary and not for performance data. Pump rebuilds, pressure testing and any work on pressurized lines are tasks for trained technicians, with the machine isolated and depressurized under your site procedure.

Chemical dosing and the foam step

Chemistry reaches the vehicle through dosing pumps, solenoid valves and dedicated nozzles or foam applicators. The detail differs by machine type.

• Ephesus brush rollover: the standard accessory list on the Ephesus product page includes a chemical dosing pump for the foam laying system. The machine can foam vehicles.
• Conveyor tunnel: the tunnel product page describes a chemical sequence of shampoo, foam and a wax coat, with the PLC guiding the vehicle through pre-soak, power-brushing, surface protection and drying.
• Acrobat 2X: the touchless machine relies on its pressure and chemical steps for cleaning, since there are no brushes. The product page lists the pressure adjustment valve and the protected pump cabin; it does not publish a dosing component list in the sources reviewed here.

Chemical concentrates are hazardous. Dosing pumps, hoses and fittings should be handled with the PPE named in the safety data sheet for each product, and by staff trained for that task. Dilution ratios depend on the product and water quality, so take them from the chemical supplier and not from the machine builder’s component list.

Motion, frame and drives

The motion system turns the gantry, arms, brush shafts and conveyor into controlled movement. Its main parts are electric motors, gearboxes, rails or bearings, position feedback and the drives that regulate speed.

Gantry and arms

The Acrobat 2X has two movable arms on a supporting bridge with PLC control. The product page says it moves in six axes and that all movements are controlled by inverters with several speed options. The SUNRISE heavy vehicle rollover travels as a moving gantry on fixed vehicle rails, according to the truck and bus wash systems page. The Ephesus lists bridge execution motors as a standard accessory.

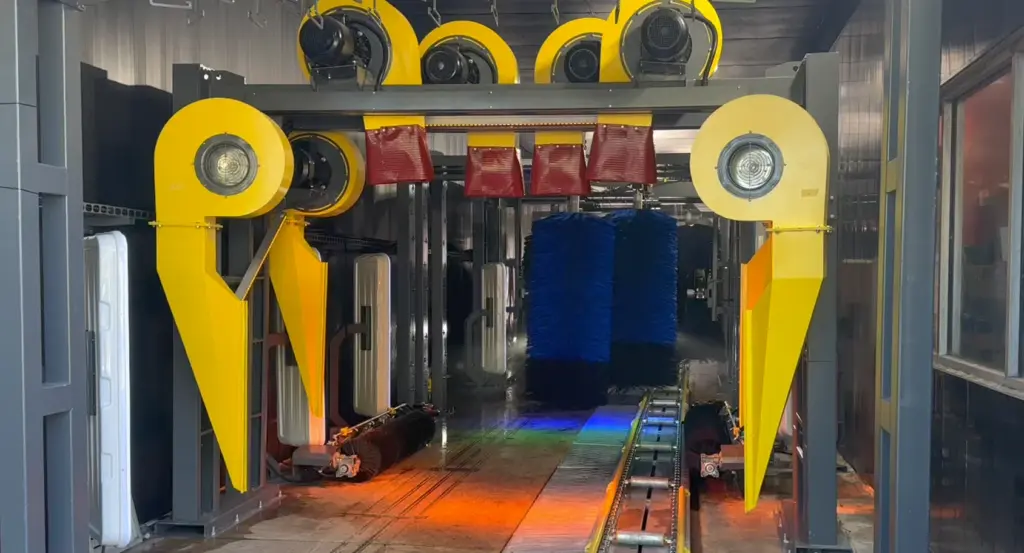

In a conveyor tunnel the arrangement reverses. The conveyor tunnel page says the vehicle moves on the conveyor while the machinery stays put. The conveyor is dual speed, and the tunnel product page describes a "Speed 2" setting for peak times.

Inverters and variable frequency drives

An inverter, also called a variable frequency drive or VFD, changes motor speed by changing the electrical frequency. The Bonneville Power Administration explains this on its Variable Frequency Drives page. It also notes that VFDs give soft starts and reduce the impact of starting the motor. That page is written for agricultural irrigation, so use it for the principle only. Its savings figures apply to irrigation turbine pumps and should not be carried over to wash pumps.

The U.S. Department of Energy, with the Hydraulic Institute and Europump, publishes Variable Speed Pumping: A Guide to Successful Applications. Its executive summary says pumping systems account for nearly 20% of the world’s energy used by electric motors. It also says that where an application needs flow or pressure control, an electronic variable speed drive is the most energy-efficient control option. For a wash system, that means a drive on a pump or a motor is a legitimate component choice where the duty varies, and the actual benefit depends on duty cycle.

Europe Makine says the Acrobat 2X motors run with inverter speed-control devices and credits them with significant energy savings. No figure is published, so treat it as a manufacturer statement. The Ephesus lists a horizontal brush system with an inverter for speed adjustment and soft start and soft stop.

Brushes, nozzles and contact elements

The parts that touch or spray the vehicle define the wash type and set the vehicle limits.

• Acrobat 2X: touchless, with no brushes. Cleaning is done by pressure and chemistry from the arms.
• Ephesus: 2 vertical brushes and 1 horizontal brush. The vertical brushes use a swing mechanism on an independent reciprocating bearing shaft system. The horizontal brush has a Digital Power Control reader and a safety roller.
• Cirrus 5N: 4 upright brushes and 1 horizontal brush, per the car wash systems page.
• Conveyor tunnel: power-brushing, with brushes running on automated power-feedback loops according to the tunnel product page.
• SUNRISE: horizontal and vertical brushes with pressure control, in PE plastic or soft-brush options, per the Sunrise product page. The brush count is not published on the SUNRISE W4000 / W4700 page, so ask for it in the quote.

The Digital Power Control reader on the Ephesus, listed as Print Control among the standard accessories, is a sensing component. It tells the controller how hard the horizontal brush is working, so the brush can follow the vehicle contour. Power-feedback loops on the tunnel brushes serve the same purpose.

The SUNRISE also has chassis-spray nozzles for underbody washing and an optional brushless high-pressure Hydrowash. For fleets with heavy underbody soiling, the nozzle layout under the vehicle is as important as the brush set above it.

Drying components

Dryers are blowers with ducts, nozzles and, on better-fitted machines, a way of following the vehicle profile. The tunnel table on the car wash systems page gives these figures for the Europe Makine conveyor tunnel:

• Overhead drying power: 2 × 3 HP, profile-tracking.
• Side drying power: 2 × 5.5 HP, fixed multi-angle.

The tunnel page lists contour-following overhead drying as a feature, and the tunnel system page lists overhead and side dryers among its standard items. On the SUNRISE, the Sunrise product page lists an optional drying system. Whether a dryer is standard or optional changes both the machine and the building, so confirm it in the specification.

Controllers, sensors and the operator interface

The controller is the part that decides when every other component acts. All the Europe Makine machines reviewed here use a PLC, or programmable logic controller.

• The Acrobat 2X, Ephesus and SUNRISE are described as PLC controlled. The Sunrise product page adds an option for manual control.
• The tunnel uses a centralized industrial PLC, which the product page describes as the control centre guiding the vehicle through the sequence.
• The Ephesus has a pedestal operator panel as a standard accessory.

A PLC reads inputs and drives outputs. Inputs include position feedback, brush load signals, vehicle detection and safety circuits. Outputs include motor contactors, inverter commands, solenoid valves and dosing pumps. The research behind this article found no primary source that lists generic sensors, photo-eyes or controller brands for these machines, so this guide does not list them. Ask the supplier for an input and output schedule for the machine you are considering.

One practical specification point: operator panel placement and language, fault message detail, and remote access for service are not set by the PLC alone. They are set by how the panel and software are configured, and they affect how quickly a technician can diagnose a stop.

Safety devices and lockout

Safety components are part of the machine, and they are not adjustable for convenience. The Ephesus page lists an emergency stop button, soft start and soft stop, and water shields with transparent windows. The horizontal brush has a safety roller. Moving gantries, brushes and conveyors can injure people, and high-pressure water can cut skin.

Do not bypass, adjust or repair safety circuits yourself. Faults in those circuits are a job for trained technicians, working under your site’s energy control procedure.

Lockout and tagout is the energy isolation method most wash sites use for maintenance. Oregon OSHA’s lockout/tagout guide says lockout is the minimum requirement where an energy-isolating device can accept a lock. Tagout is used where a device cannot accept a lock, and it needs additional protective measures. That is a state-plan publication, so it describes Oregon practice. A trade article, Why carwashes must follow lockout and tagout procedures, names federal OSHA’s 29 CFR 1910.147 on the control of hazardous energy as the minimum standard. Check the current text of that standard on OSHA.gov and your state’s rules with your safety officer or attorney. The wash components most affected are the pump motors, gantry drives, conveyor, dryers and any stored pressure in lines.

Water reclaim and filtration

Reclaim is a standard system block in many wash designs. The same patent, US 5,908,550, says many vehicle washes recycle much of their water, which reduces consumption and discharge. A reclaim block usually contains collection pits or tanks, settling or filtration stages, transfer pumps and a connection back to the supply side. The cleaner the recycled water, the lower the risk of wear in high-pressure pumps, as the patent notes for positive displacement and multi-stage centrifugal types.

Wash-water discharge rules vary by jurisdiction. Ask your local sewer authority and state environmental agency what pretreatment or reuse conditions apply to your site, and have your engineer confirm the design against them. This article does not state current discharge limits.

Cold-climate protection

Water in lines can freeze, so heavy vehicle machines carry a drain-down feature. The truck and bus wash systems page says the SUNRISE W4000 / W4700 has automatic push-button winter evacuation, triggered below +4°C (about 39°F), to prevent freezing in the lines. The Sunrise product page describes the winter discharge system as manual and optional. The two pages differ, so confirm which version is quoted for the model you buy.

Components compared by machine

The table summarizes what the Europe Makine pages list for each machine. It is a reading aid, and an empty cell means the page reviewed did not publish that item.

Machine	Contact or spray elements	Drives and control	Other listed components
Acrobat 2X touchless rollover	Two movable arms, no brushes	PLC, six axes, inverters with several speed options	Pressure adjustment valve, pump groups on a chassis in a protected cabin, 100/200 bar stated on the home page
Ephesus three-brush rollover	2 vertical and 1 horizontal brush	PLC, bridge execution motors, horizontal brush inverter, soft start and stop	Chemical dosing pump for foam, Digital Power Control, pedestal operator panel, polyester side and top dressing, emergency stop, water shields
Cirrus 5N five-brush rollover	4 upright and 1 horizontal brush	Not detailed in the sources reviewed	Takes optional components at any time, per the systems page
Conveyor tunnel	Power-brushing on power-feedback loops	Centralized industrial PLC, dual-speed conveyor	Pre-soak, shampoo, foam, wax, overhead dryers 2 × 3 HP, side dryers 2 × 5.5 HP
SUNRISE W4000 / W4700	Horizontal and vertical brushes (PE plastic or soft-brush), chassis-spray nozzles	PLC with optional manual control, moving gantry on fixed rails	Optional Hydrowash, optional drying, winter evacuation, A1 grade DKP steel with electrostatic powder coating and hot-dip galvanization

Vehicle limits that depend on components

Component choices set the envelope the machine can wash. The figures below are Europe Makine’s, for the named machine only.

• Ephesus: up to 3.00 m high and 2.20 m wide (about 9.8 ft by 7.2 ft).
• Conveyor tunnel: modular, 9 to 30 m long (about 30 to 98 ft), with a maximum vehicle width of 220 cm (about 7.2 ft) and height of 250 cm (about 8.2 ft).
• SUNRISE W4000: washes to 4.20 m high (about 13.8 ft) and 2.85 m wide (about 9.4 ft). The W4700 washes to 4.70 m high (about 15.4 ft).

The conveyor tunnel’s published capacity differs between pages of the same manufacturer, so this guide leaves it out. Ask for the throughput for the exact model and tunnel length you are considering, along with the conditions behind it.

Modularity and optional equipment

Europe Makine describes every machine as modular on its systems page. The Cirrus 5N takes optional components at any time, the SUNRISE installs optional accessories without consuming extra space, and the Acrobat 2X and Ephesus take optional equipment. A tunnel is configured with its arch sequence and optional equipment at the proforma stage. For a buyer, this means the base parts list is only the starting point. Decide which options you need at the start, since a dryer, a Hydrowash unit or an extra dosing line changes the electrical load, the water demand and the room around the machine.

Building a parts list for your own comparison

Use the groups above as a template when you ask two suppliers for quotes, so the responses can be compared line by line.

1. List the vehicles first: height, width, length and soil type.
2. Ask each supplier for the pump type, rated pressure and flow, and where the pump group is housed.
3. Ask which chemical steps are dosed by standard equipment and which need options.
4. Ask where drives are used, and whether pumps or only motion motors have variable speed control.
5. Ask for the brush count, material and pressure control method, or confirm that the machine is touchless.
6. Ask whether drying is standard or optional, and for its installed power.
7. Ask for the controller type, the operator interface and the input and output list.
8. Ask which safety devices are fitted and what lockout points the machine provides.
9. Ask about spare parts holding and technician availability. Europe Makine holds technicians and spare parts at its Greenacres, Florida base.

Cost follows from this list. Pump size, number of brushes, dryer power, options and the building and utility work around the machine all drive it, and Europe Makine quotes only after it has seen the site and the vehicles.

Where this guide stops

This guide covers the components that appear in the Europe Makine product pages and the independent technical sources named above. It does not cover rail wash systems, which are specified per project, and it does not state discharge, chemical handling or electrical code requirements. For those, your engineer, attorney and local authorities are the right sources. If you want to compare the machine types themselves before settling on components, start with the car wash systems page or the truck and bus wash systems page.

Talk to Europe Makine once you have the vehicle list and a site plan, so the component configuration can be quoted against them, because this article is general information and does not replace a site survey.
